Military and defense communication systems may be deployed in environments where ordinary commercial cabling is not designed to operate.

A cable may be repeatedly deployed across rough ground, installed inside a vibrating vehicle, exposed to salt spray aboard a ship or routed through an outdoor command site. In these environments, a cable failure can interrupt communications, sensing, surveillance or control functions.

Military-grade fiber optic cable is designed to address these risks through rugged mechanical construction, controlled optical performance and application-specific environmental testing.

However, the term military-grade does not describe one universal cable design. A tactical field cable, shipboard cable, aircraft cable and permanently buried military cable may have substantially different requirements.

A product should therefore be considered military-compliant only when it meets the specific specification, detail sheet, qualification requirement and test program stated in the procurement document.

What Does “Military-Grade” Actually Mean?

In commercial marketing, “military-grade” is sometimes used loosely to describe a rugged product. In a formal defense procurement context, the term should have a more precise meaning.

A cable or assembly may need to comply with one or more of the following:

• A military performance specification
• A military detail specification
• A platform-specific drawing
• An environmental test plan
• A qualified-products requirement
• A customer-controlled interface specification
• A contract-specific acceptance test
• A first-article inspection requirement
• Lot-level production testing

There is no single MIL specification covering every type of military fiber optic cable.

For example, the MIL-PRF-85045 family includes separate specification sheets for different cable constructions, fiber counts, temperature ranges and airborne or shipboard applications. Active sheets include single-fiber tight-buffered cable, loose-tube cable, flexible ribbon cable and enhanced-performance shipboard configurations.

A cable qualified for one detail sheet should not automatically be presented as suitable for every military platform.

Military-Grade vs. Ruggedized Fiber Cable

These terms should not be treated as interchangeable.

Ruggedized Fiber Optic Cable

A ruggedized cable incorporates additional protection such as:

• Polyurethane jacket
• Aramid-yarn strength members
• Crush-resistant buffer structure
• Rodent-resistant armor
• Water blocking
• Reinforced breakout legs
• Sealed connectors

It may perform well in industrial, emergency-response or temporary outdoor applications without being formally qualified to a military specification.

Military-Specification Cable

A military-specification cable is manufactured and tested according to an identified military specification or customer drawing.

Depending on the procurement requirement, compliance may involve:

• Approved materials
• Dimensional limits
• Defined optical performance
• Environmental testing
• Mechanical testing
• Traceability
• Lot acceptance
• Qualification through the applicable QPL or QPD system

A rugged construction alone does not prove MIL-SPEC compliance.

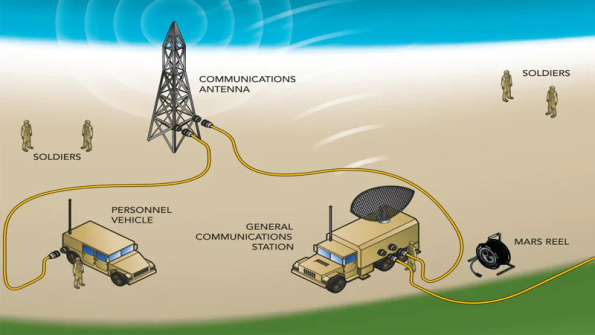

Why Fiber Optics Are Used in Military Systems

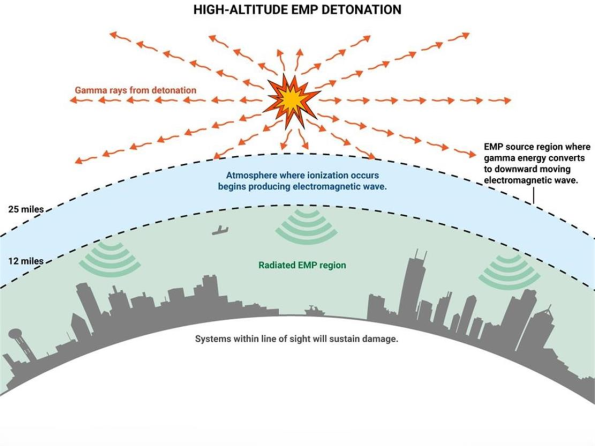

1. Resistance to Electromagnetic Interference

Optical fiber transmits information using light rather than electrical current. The optical transmission medium is therefore not affected by electromagnetic interference in the way that copper conductors are.

This is useful near:

• Radar systems
• Motors and generators
• High-power radio equipment
• Power-distribution systems
• Electrically noisy vehicles
• Shipboard machinery

The complete system is not automatically immune to every electromagnetic threat. Transceivers, switches, power supplies, metallic armor and equipment enclosures may still need to satisfy applicable electromagnetic-environment requirements.

MIL-STD-461 establishes EMI emission and susceptibility requirements for certain defense electronic equipment and subsystems, while MIL-STD-464 addresses electromagnetic environmental effects at the system level.

2. Electrical Isolation

A fully dielectric fiber optic cable does not provide a conductive metallic path between connected locations.

This can be beneficial when connecting:

• Separate vehicles
• Different buildings
• Substations
• High-voltage areas
• Equipment with different ground potentials
• Lightning-exposed outdoor sites

If electrical isolation is required, metallic armor, metallic strength members and conductive connector shells must be considered separately.

3. High Data Capacity

Single-mode and multimode fibers can support high-data-rate transmission when paired with suitable optical transceivers.

Military applications may carry:

• Voice
• Video
• Radar data
• Sensor information
• Equipment control
• Network traffic
• Telemetry

The cable itself does not define the final data rate. Capacity depends on the fiber, transceivers, wavelengths, modulation format and system architecture.

4. Lower Weight and Size for High-Channel-Count Systems

Fiber can consolidate substantial communication capacity into relatively small cables.

This may reduce the number of copper pairs required, although total assembly weight depends on armor, connectors, reels, breakout hardware and environmental protection.

5. Reduced Electromagnetic Radiation From the Transmission Medium

A passive optical fiber does not radiate the same electromagnetic field as a copper communication conductor.

This can reduce some forms of electromagnetic interception. It does not make a network impossible to tap.

Secure systems still require:

• Encryption
• Authentication
• Physical access control
• Cable-route monitoring
• Tamper detection
• Key management
• Network security controls

Common Military Fiber Optic Standards

The applicable standard depends on whether the procurement concerns the fiber, cable, connector, terminus, installation or environmental test method.

MIL-PRF-49291: Optical Fiber

MIL-PRF-49291 is a performance-specification family for optical fiber.

Its detailed specification sheets cover different optical-fiber types and performance characteristics. Some active sheets specifically address radiation-resistant fiber and enhanced aircraft-related performance.

This specification concerns the optical fiber itself and should not be presented as a complete tactical-cable or connector standard.

MIL-PRF-85045: Fiber Optic Cable

MIL-PRF-85045 is a major performance-specification family for military fiber optic cables.

Its detail sheets cover configurations such as:

• Single-fiber tight-buffered cable
• Multi-fiber shipboard cable
• Loose-tube cable
• Flexible ribbon cable
• Blown-fiber tube systems
• Submarine outboard cable
• Single-mode and multimode constructions

Different sheets specify different application, construction and environmental requirements.

A supplier should state the exact applicable detail sheet rather than only saying “MIL-PRF-85045 compliant.”

MIL-DTL-83526: Environmental-Resistant Field Connector

MIL-DTL-83526 covers circular, environmental-resistant, hermaphroditic fiber optic connectors designed for rugged military field applications.

Hermaphroditic interfaces allow compatible cable assemblies to be connected without separate male and female cable-end configurations.

This connector type is commonly associated with deployable tactical fiber systems.

MIL-PRF-28876: Multi-Terminus Circular Connector

MIL-PRF-28876 covers circular plug-and-receptacle fiber optic connectors using multiple removable termini.

The specification includes connector shells, inserts, retention components, backshells and protective covers for defense applications.

Associated removable fiber optic termini may be covered by MIL-PRF-29504 detail sheets.

MIL-STD-2042: Shipboard Fiber Installation

MIL-STD-2042 provides standardized methods for the selection, handling, installation, interconnection, repair and testing of fiber optic cabling on surface ships and submarines.

Different parts address:

• Cable selection and handling
• Equipment installation
• Cableways
• Connectors and interconnections
• Testing
• Repair and maintenance

Compliance of a cable component does not remove the need for compliant installation and testing procedures.

MIL-STD-810: Environmental Engineering and Testing

MIL-STD-810 provides environmental-engineering guidance and laboratory test methods.

It is not a single universal certification with one fixed test sequence. The standard specifically uses an environmental-tailoring process in which the applicable stresses and methods are selected according to the product’s expected service environment.

A claim such as “MIL-STD-810 tested” should therefore identify:

• Revision
• Test method
• Procedure
• Exposure level
• Duration
• Operating state
• Acceptance criteria
• Test report

MIL-STD-167: Shipboard Vibration

MIL-STD-167-1 defines procedures and requirements for environmental and internally generated vibration testing of specified naval shipboard equipment.

Whether it applies directly to a cable, connector, assembly or supporting equipment depends on the procurement and installation requirements.

Standards That Should Not Be Misrepresented

MIL-DTL-38999

MIL-DTL-38999 is a general specification for high-density, environmental-resistant circular electrical connectors.

Fiber optic termini may be incorporated into certain compatible connector systems, but MIL-DTL-38999 is not by itself a generic military fiber optic cable standard.

MIL-DTL-24643

MIL-DTL-24643 covers low-smoke, halogen-free electrical cables for Navy shipboard applications.

It should not be cited as though it were the primary general specification for fiber optic cable.

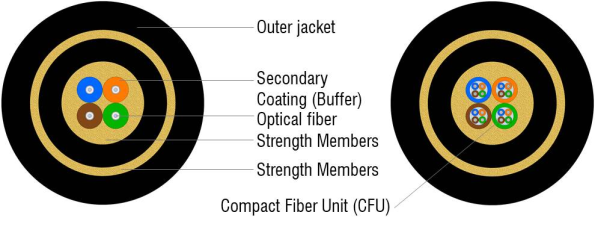

Construction of a Rugged Military Fiber Optic Cable

Military cable construction varies significantly by application. A typical rugged assembly may contain several of the following elements.

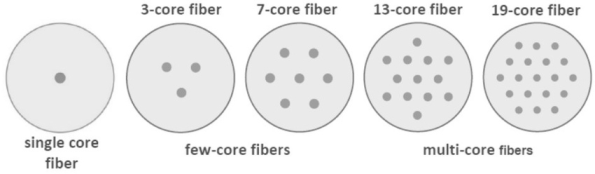

1. Optical Fiber

Available fiber types may include:

• OS2 single-mode fiber
• OM1, OM2, OM3 or OM4 multimode fiber
• Bend-insensitive fiber
• Radiation-resistant fiber
• Polarization-maintaining fiber
• Specialty sensing fiber

The correct fiber must match the transceiver wavelength, distance, launch condition and environmental requirement.

The fiber does not become “military-grade” simply because it is placed in a heavy jacket. Its optical and environmental specifications must also satisfy the required standard.

2. Primary Coating and Buffer

The glass fiber normally has a primary protective coating.

Additional cable constructions may use:

• Tight buffer
• Loose tube
• Semi-tight buffer
• Ribbon structure
• Breakout subunits

Tight-Buffered Construction

Tight-buffered cable can provide:

• Easy field handling
• Direct termination
• Compact breakout
• Flexible tactical assemblies

Loose-Tube Construction

Loose-tube cable can provide:

• Improved isolation from tensile strain
• Space for fiber movement during temperature changes
• Effective water-blocking options
• Suitability for outdoor and fixed installations

Neither construction is universally stronger. Performance depends on the complete design and tested requirements.

3. Strength Members

Common strength members include:

• Aramid yarn
• Fiberglass yarn
• Glass-reinforced plastic rods
• Steel members
• Central strength members

They help transfer pulling loads away from the optical fibers.

Required tensile strength should be stated in newtons or pounds-force together with:

• Installation or operating condition
• Test duration
• Permissible attenuation change
• Residual elongation
• Pass/fail criteria

4. Water-Blocking Elements

Outdoor and marine cables may include:

• Water-blocking yarn
• Swellable tape
• Gel-filled tubes
• Flooding compounds
• Sealed cable entries

Water resistance must be verified through the applicable test method. Metal armor alone does not make a cable waterproof.

5. Armor

Armor may be added for:

• Crush resistance
• Impact resistance
• Rodent resistance
• Additional tensile strength
• Mechanical protection

Possible constructions include:

• Corrugated steel tape
• Interlocking metal armor
• Steel wire armor
• Flexible stainless-steel tubing
• Dielectric fiberglass armor

Metallic armor may require bonding or grounding and may eliminate some of the electrical-isolation advantages of an all-dielectric cable.

6. Outer Jacket

Common rugged-jacket materials include:

• Thermoplastic polyurethane
• Polyethylene
• Low-smoke, zero-halogen compounds
• Flame-retardant thermoplastics
• Chemical-resistant elastomers

Selection may depend on resistance to:

• Abrasion
• Oil
• Fuel
• Hydraulic fluid
• UV radiation
• Salt spray
• Mud
• Temperature extremes
• Flame and smoke

No jacket material provides every property equally well.

7. Rugged Connectors and Backshells

Military and tactical assemblies may use:

• Hermaphroditic field connectors
• Multi-terminus circular connectors
• Expanded-beam connectors
• Physical-contact termini
• Sealed bulkhead connectors
• Commercial LC or SC connectors inside rugged enclosures

Connector selection affects:

• Insertion loss
• Return loss
• Dust tolerance
• Cleaning requirements
• Mating durability
• Environmental sealing
• Repairability
• Deployment speed

Types of Military and Tactical Fiber Optic Cable

Tactical Deployable Cable

Tactical cable is designed for repeated deployment and retrieval.

Typical characteristics may include:

• Flexible polyurethane jacket
• Aramid-yarn strength members
• Tight-buffered fibers
• Compact cable diameter
• Rugged field connectors
• Deployment reels
• Resistance to abrasion and repeated flexing

It may be used between temporary command posts, mobile shelters, sensors and field equipment.

A tactical cable should not be described as vehicle-proof unless a specific crush or vehicle-overrun test has been completed.

Shipboard Fiber Optic Cable

Shipboard cable may need to address:

• Vibration
• Limited cableway space
• Smoke and flame requirements
• Salt and moisture exposure
• Mechanical protection
• Weight
• Maintainability
• Platform-specific installation procedures

MIL-PRF-85045 contains multiple shipboard-oriented cable detail sheets, while MIL-STD-2042 addresses shipboard installation and testing.

Airborne and Vehicular Cable

Aircraft and vehicle cables may prioritize:

• Low weight
• Small diameter
• Vibration resistance
• Temperature performance
• Fluid resistance
• Tight bend radius
• Secure connector retention

The exact temperature and vibration ranges must come from the applicable platform specification rather than a generic military-grade value.

Fixed-Installation Military Cable

Permanent facilities may use cables designed for:

• Duct installation
• Direct burial
• Building backbones
• Protected outdoor routes
• Command centers
• Surveillance networks
• Base infrastructure

These cables may be heavier and less flexible than tactical cable because repeated deployment is not the primary requirement.

Radiation-Resistant Fiber Cable

Radiation-resistant fibers are designed to limit radiation-induced attenuation in specified environments.

MIL-PRF-49291 includes active detail sheets for radiation-resistant optical fibers.

Radiation resistance must be specified by:

• Radiation type
• Total dose
• Dose rate
• Wavelength
• Temperature
• Permissible attenuation increase

The phrase “radiation hardened” alone is insufficient for technical selection.

Hybrid Cable

Hybrid assemblies may combine:

• Optical fibers
• Copper conductors
• Power conductors
• Control wiring
• Strength members

They can reduce the number of separate cables, but they require more careful consideration of electrical safety, EMI, connector design and repair procedures.

Key Advantages

High Bandwidth and Long Reach

Fiber supports high-capacity transmission over distances that would be difficult for conventional copper data cabling.

Actual reach is determined by the transceiver standard and optical link budget.

Resistance to Electrical Noise

The optical path is not affected by electromagnetic interference generated by nearby electrical equipment.

Rugged Mechanical Construction

A properly designed tactical or armored cable can reduce damage from:

• Pulling
• Abrasion
• Repeated handling
• Crushing
• Impact
• Rodents
• Harsh weather

The exact resistance must be established through product testing.

Rapid Field Deployment

Pre-terminated tactical assemblies and hermaphroditic connectors can reduce setup time and simplify extension of temporary fiber links.

Electrical Isolation

All-dielectric cable can prevent ground-current flow between network locations.

Lower Probability of Undetected Passive Electromagnetic Interception

The optical medium does not emit the same electromagnetic field as copper communication lines.

Encryption and physical security remain necessary.

Limitations and Trade-Offs

Higher Initial Cost

Rugged jackets, specialized connectors, low-volume production, qualification tests and traceability can increase product cost.

There is no reliable universal multiplier such as “five to eight times commercial price.”

Greater Weight and Diameter

Armor and reinforcement may increase:

• Cable weight
• Reel size
• Minimum bend radius
• Handling effort
• Shipping cost

Lightweight tactical cable and heavy direct-burial cable should not be compared as though they were the same product class.

Cleaning Requirements

Physical-contact fiber connectors require inspection and cleaning.

Dust or contamination can cause:

• Increased insertion loss
• Back reflection
• End-face damage
• Unstable links

Expanded-beam connectors may tolerate dirty field conditions better in some applications but may have different loss and cost characteristics.

Specialized Repair and Testing

Field repair may require:

• Fiber cleaver
• Fusion splicer or mechanical-splice tools
• Connector termination tools
• Inspection microscope
• Optical power meter
• Light source
• OTDR
• Trained personnel

Pre-terminated replacement sections and modular connectors may simplify maintenance.

No Automatic Security Guarantee

Fiber is harder to monitor through electromagnetic induction, but it can still be physically accessed or tapped.

Secure network design still requires encryption, authentication and route protection.

How to Select a Military-Grade Fiber Optic Cable

Selection Factor	Questions to Confirm
Applicable specification	Which exact MIL specification, detail sheet or customer drawing applies?
Qualification	Is QPL/QPD qualification required, or is test-report compliance sufficient?
Application	Tactical, shipboard, airborne, vehicular, buried or fixed installation?
Fiber type	OS2, multimode, bend-insensitive, radiation-resistant or specialty fiber?
Fiber count	How many active and spare fibers are required?
Cable construction	Tight-buffered, loose-tube, ribbon, breakout or hybrid?
Deployment frequency	Permanent installation or repeated reel deployment?
Temperature	Required installation, operating and storage ranges?
Mechanical performance	Tensile, crush, impact, torsion, flexing and bend-radius requirements?
Moisture	Rain, immersion, water blocking, salt fog or direct burial?
Chemical exposure	Fuel, oil, hydraulic fluid, solvents or decontamination agents?
Flame and smoke	Which platform-specific flame, smoke and toxicity requirements apply?
Electrical isolation	Must the cable be completely dielectric?
Connector	MIL-DTL-83526, MIL-PRF-28876, expanded beam or another interface?
Optical performance	Maximum insertion loss, return loss and attenuation?
Mating durability	How many connection cycles are required?
Repair method	Field splice, replaceable assembly or removable termini?
Documentation	Certificate of conformance, raw test data, first-article report or traceability?

Qualification and Documentation

Before purchasing a product described as military-grade, request the precise evidence supporting the claim.

Relevant documentation may include:

• Applicable specification and revision
• Detail-sheet number
• Manufacturer part number
• Qualification status
• Qualified Products Database record
• Certificate of conformance
• First-article test report
• Lot-acceptance report
• Optical test results
• Environmental test report
• Material traceability
• Connector mating and cleaning instructions

A statement such as “designed to meet MIL-STD-810” is not equivalent to proof that a specific configuration passed defined MIL-STD-810 methods and procedures. MIL-STD-810 itself requires environment-specific tailoring rather than one generic certification sequence.

Typical Mechanical and Environmental Tests

Depending on the specification, an assembly may be evaluated for:

• Cable attenuation
• Connector insertion loss
• Return loss
• Tensile loading
• Crush resistance
• Impact
• Torsion
• Repeated flexing
• Cable bend
• Connector mating durability
• Vibration
• Mechanical shock
• Temperature cycling
• High- and low-temperature operation
• Humidity
• Water immersion
• Salt fog
• Sand and dust
• Fluid resistance
• UV exposure
• Flame and smoke

Test values and procedures must come from the applicable specification or contract.

Optical Acceptance Testing

A completed cable assembly may require:

Insertion-Loss Testing

Measures total optical loss through the cable and connectors.

Return-Loss Testing

Measures reflected optical power, particularly for single-mode physical-contact connectors.

OTDR Testing

Can help identify:

• Fiber events
• Splices
• Connector reflections
• Excessive bends
• Cable damage
• Approximate event locations

End-Face Inspection

Checks for:

• Dust
• Oil
• Scratches
• Pits
• Ferrule damage

Continuity and Fiber Mapping

Confirms that every fiber is connected to the correct position at the opposite end.

MIL-STD-2042 includes detailed shipboard methods for fiber selection, handling, connector installation and completed-installation testing.

Common Purchasing Mistakes

Treating “Military-Grade” as a Complete Specification

The phrase alone does not define temperature, tensile strength, fiber type or connector.

Using One Generic Temperature Range

A range such as −55°C to +85°C may apply to some components, but not every military cable.

Selecting by Armor Thickness Alone

A thick armored cable may be inappropriate for a lightweight tactical or airborne application.

Confusing EMI Immunity With EMP-Proof Operation

The optical fiber is immune to normal EMI, but the connected electronics and conductive structures still require system-level engineering.

Claiming Compliance Without a Detail Sheet

MIL-PRF-85045 contains multiple configurations. Stating only the base specification may be insufficient.

Ignoring Installation Procedures

A qualified cable can still fail if it is pulled beyond its rating, bent too tightly, contaminated or terminated incorrectly.

Assuming Waterproof Connectors Make the Entire Assembly Waterproof

The connector, backshell, cable entry and cable jacket must all satisfy the required environmental sealing level.

Using Commercial LC or SC Connectors in Unprotected Field Conditions

Commercial connectors may be suitable inside protected equipment, but exposed tactical links may require a sealed rugged interface.

Frequently Asked Questions

Is every rugged fiber cable military-grade?

No.

A ruggedized cable may provide excellent mechanical and environmental performance without being qualified to a military specification.

Can a military fiber cable be driven over by a vehicle?

Only when the exact cable assembly has a tested vehicle-overrun or crush rating sufficient for that load and surface condition.

“Military-grade” alone does not guarantee vehicle-overrun survival.

Is military fiber optic cable EMP-proof?

The optical transmission medium is not affected by EMI in the same way as copper conductors.

The complete network still contains electronics, power supplies, enclosures and possibly metallic armor. System-level EMP or electromagnetic-environment performance must be separately designed and verified.

Is tactical fiber cable always armored?

No.

Many tactical cables rely on flexible polyurethane jackets and aramid strength members rather than heavy metallic armor. Excessive armor can make repeated deployment more difficult.

What is the difference between tactical and direct-burial military cable?

Tactical cable prioritizes flexibility, repeated deployment and field handling.

Direct-burial cable prioritizes moisture protection, crush resistance and long-term underground service.

Does military-grade fiber need special connectors?

It depends on the application.

Protected internal links may use commercial connector formats. Exposed field links may use MIL-DTL-83526, MIL-PRF-28876, expanded-beam or other rugged interfaces.

Is fiber optic cable impossible to tap?

No.

Fiber does not radiate the same electromagnetic signal as copper, but physical tapping remains possible. Encryption and route monitoring should still be used where security is critical.

Does metallic armor improve EMI immunity?

The optical signal already has inherent immunity to electromagnetic interference.

Metallic armor primarily provides mechanical protection and may create additional bonding or grounding requirements.

How do I verify a MIL-SPEC claim?

Request the applicable specification, detail sheet, qualification status, manufacturer part number and supporting test documentation.

Conclusion

Military-grade fiber optic cable is not one universal product category. It is a family of application-specific cables and assemblies designed to satisfy identified military, platform or contract requirements.

A tactical cable optimized for repeated deployment may be lightweight and flexible. A shipboard cable may prioritize vibration, smoke and installation requirements. A buried cable may require armor and water blocking, while an airborne cable may prioritize minimum weight and diameter.

The most important selection factors are:

• Exact specification and detail sheet
• Application environment
• Fiber type and count
• Mechanical construction
• Temperature and fluid resistance
• Connector system
• Optical performance
• Qualification and test documentation
• Installation and repair method

Sunma can supply customized ruggedized fiber optic cables and assemblies with single-mode or multimode fibers, reinforced jackets, armored constructions and rugged connector options. Any military-standard compliance claim should be tied to the exact product configuration, applicable specification and available qualification or test documentation.
