ST-200Q Signal level meter

ST-200Q Signal level meter

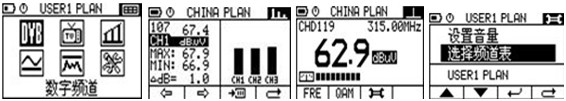

1. A test instrument applicable for the maintenance of CATV (Analog, Digital measurement,TILT)system;2. Compact, light-weight, easy to carry;3. With dual-channel measurement display, it is convenient and pragmatic;4. Able to measure MER, BER Signal Level,Channel Power,V/A,C/N,FM,Trunk Voltage

 Specifications:



Features of ST-200/200Q Signal Level Meter 1. A test instrument applicable for the maintenance of CATV (Analog, Digital measurement,TILT)system;2. Compact, light-weight, easy to carry;3. With dual-channel measurement display, it is convenient and pragmatic;4. Able to measure  MER, BER Signal Level,Channel Power,V/A,C/N,FM,Trunk Voltage 5.Channel and single frequency mode

Signal Lever Meters correlation table
Model No Constellation Main Parameter
ST-110/110Q No Doulbe channel,  A/V,  C/N, Average Power, Trunk line Voltage,
ST-128/128Q No Spectrum,  Channel Power,  Tilt , A/V,  C/N, Average Power, Trunk line Voltage,
ST-200/200Q No MER, BER,  Tilt , A/V,  C/N, Average Power, Trunk line Voltage,
ST-1129/1129Q Yes Spectrum, MER, BER , Tilt , Channel Power, A/V, C/N, Average Power, Trunk line Voltage
ST-1130/1130Q Yes Advanced spectrum, Full automatica scan , MER, BER ,  Tilt  , V/A,C/N , Average Power ,Channel Power, Trunk line Voltage, Threshold, Alarms















Technical Data

Model ST-200 ST-200Q
Digital DVB
Frequency scope 47~870MHz 5~870MHz
Modulation DVB-C/ITU-T
Support 64QAM/256QAM(option)
Digital average power 30dBuV ~ 110dBuV
precision +2dB
Symbol rate 1MS/S-7 MS/S
Modulate error rate(MER) 22dB ~ 39dB
Bit error rate(BER) RS 1E-3~1E-9
Analog TV
Frequency scope 46/5~870MHz
level 20dBuV ~ 120dBuV
precision +1.5dB
Channel scan 150
Power supply
battery 7.2V/1500mAH rechargeable battery
AC Supply: AC 90V-220V 50Hz-60Hz
Working time 6h
Charging time 3h
